Blowout Preventer (BOP)


We supply blowout preventers and hydraulic control system, which can meet the purpose of well drilling, underbalanced drilling, underground operation, non-killing well pressurized operations, etc. With a full range of specifications, bore sizes from 2 1/16inc-21 1/4inch, pressure rating from 7Mpa to 105Mpa (1000psi-15000psi). The H2S resistance performance complies with NACE MR-0175:2003 requirements. It is applied to oil extraction, perforation, test, operation, pressurized operation and underbalanced drillings.

We supply Manual single ram BOP, Manual double ram BOP, Hydraulic single ram BOP, Hydraulic double ram BOP, Cone rubber Annular BOP, Spherical rubber Annular BOP, Rotating Annular BOP, BOP for Cable, Sand washing operation BOP stack etc.

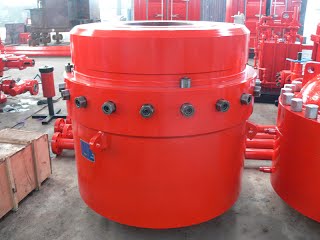

Annular BOP


The design and manufacture of Annular BOP is according to API Spec 16A standard.
Model Drift Diameter (mm) Working pressure(Mpa/psi) Close-cavity volume of fuel tank (L) Open-cavity volume of fuel tank (L)
FH18-70 179.4 36 27
FH28-70 279.4 70/10000 66 66
FH35-70 346.1 116 117
FH43-35 425.4 35/5000 134 134
FH54-14 539.8 14/20000 136.5 84.9
Model Drift Diameter (mm) Working pressure(Mpa/psi) Strength testing pressure (Mpa/psi) Hydraulic control pressure (Mpa/psi) Close-cavity volume of fuel tank(L) Open-cavity volume of fuel tank (L)
FH18-21 179.4 21/3000 42/6000 <=10.5/1500 20 13
FH18-35 179.4 35/5000 52/7450 <=10.5/1500 21 15
Fh23-21 228.6 21/3000 42/6000 <=10.5/1500 34 22.8
Fh23-35 228.6 35/5000 52/7450 <=10.5/1500 42 33
Fh28-21 279.4 21/3000 42/6000 <=10.5/1500 50 39
Fh28-35 279.4 35/5000 52/7450 <=10.5/1500 72 56
FH35-35 346.1 35/5000 52/7450 <=10.5/1500 94 69
FH48-35 446.4 35/5000 52/7450 <=10.5/1500 220 171
FH53-21 527 21/3000 52/7450 <=10.5/1500 173 110
FH54-35 539.8 35/5000 52/7450 <=10.5/1500 241 181

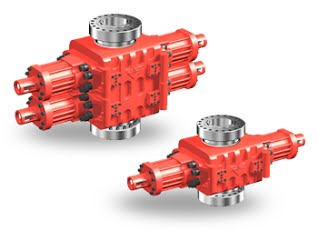

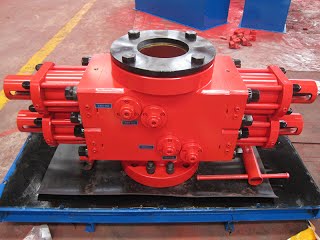

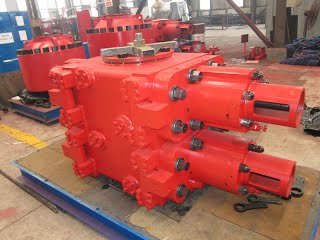

Ram BOP




Ram blowout preventer (Ram BOP) is the important equipment widely used in onshore and offshore drilling. Ram BOP, such as single ram BOP, double ram BOP, triple ram BOP, quadplex Ram BOP, are mainly hydraulic operated or manual operated. All ram BOPs are strictly manufactured as per API Spec 16A
Ram BOP Model Bore (in) Working pressure (MPa/Psi) Shear or Not Open volume (L) Close volume (L) Locking type
FZ18-21 7-1 / 16 21 / 3,000 N 2x1.6 2x2 Manual
2 FZ18-21 4x1.6 4x2
FZ18-35 35 / 5,000 N 2x1.6 2x2
FZ18-35 4x1.6 4x2
FZ18-70 70 / 10,00 N 2x2.75 2x2.75
2 FZ18-70 4x2.75 4x2.75
FZ23-21 9 21 / 3,000 2x1.96 2x2.36
2 FZ23-21 4x1.96 4x2.36
FZ23-35 35 / 5,000 2x4.4 2x5
2 FZ23-35 4x4.4 4x5
FZ23-70 70 / 10,000 N 2x5.7 2x6.3
2 FZ23-70 4x5.7 4x6.3
FZ23-70 2x5.38 2x6.08 Hydraulicl
2 FZ23-70 4x5.38 4x6.08
FZ28-21 11 21 / 3,000 2x5.2 2x6 Manual
2 FZ28-21 4x5.2 4x6
FZ28-21 Y 2x13 2x12.1
2 FZ28-21 2 ×5.2 up 2×13 down 2×6 up 2×12.1 down
FZ28-35 35 / 5,000 N 2x5.15 2x5.9
2FZ28-35 4x5.15 4x5.9
FZ28-35 Y 2X11 2X12 Manual
2 FZ28-35 4X11 4X5.9
FZ28-70 70 / 10,000 2X15 2X16.5
2 FZ28-70 4X15 4X16.5
FZ35-14 13-5/8 14/2,000 N 2X2.8 2X3.55
FZ35-21 N 2X5.85 2X6.65
2 FZ 35-21 4x5.85 4X6.65
FZ 35-21 Y 2X17.5 2X20
2 FZ 35-21 4X17.5 4X20
FZ 35-21 Y 2X24 2X27
FZ35-35 13-5/8 35/5,000 N 2X8.25 2X8.95
2 FZ35-35 4X8.25 4X8.25
FZ35-35 Y 2X17.9 2X19.6
2 FZ35-35 4X17.9 4X19.6
FZ35-70 70/10,000 2X14.7 2X16.6
2 FZ35-70 4X14.7 4X16.6
2X18.3 2X20.9 Manual
FZ35-70
2FZ35-70 4X18.3 4X20.9
FZ43-35 16-3/4 35/5,000 Y 2X20 2X23
2 FZ43-35 4X20 4X23
FZ48-35 18-3/4 2X26.5 2X31
2 FZ48-35 4X26.5 4X31
FZ53-21 21/3,000 21/3,000 N 2X11.65
2 FZ53-21 4X11.65 4X13.65
FZ54-14 21 -1/4 14/2,000 2X11.65 2X13.65
2 FZ54-14 4X11.65 4X13.65
FZ54-14 Y 2X24 2X27
2 FZ54-14 4X24 4X27
FZ54-35 35/5,000 2X29.7 2X31.1
2FZ54-35 4X29.7 4X31.1
FZ54-70 70/10,000 Y 2X28 2X29 Hydraulicl
2FZ54-70 4X28 4x29
FZ68-21 26-3/4 21/3,000 2X33.5 2X35
2 FZ68-21 4X33.5 4x35

Drilling Diverter


Suministramos desviadores de perforación de alta calidad que se fabrican y prueban de acuerdo con el estándar API / ISO.
? Body and upper housing are connected by a claw chuck.
? Compact structure realizes high bearing capacity.
? Easy to assemble and disassemble and convenient for wellsite operation.
? Use lip seal rings in dynamic seal section to realize self-sealing, reduce abrasion of sealing parts and make sealing more reliable.
? Use high quality packing element and sealing parts. Use tapered type packing element, which is made of NBR. It has massive storage volume and excellent sealing function.
? Use observation hole to check the life span of the packing element.
